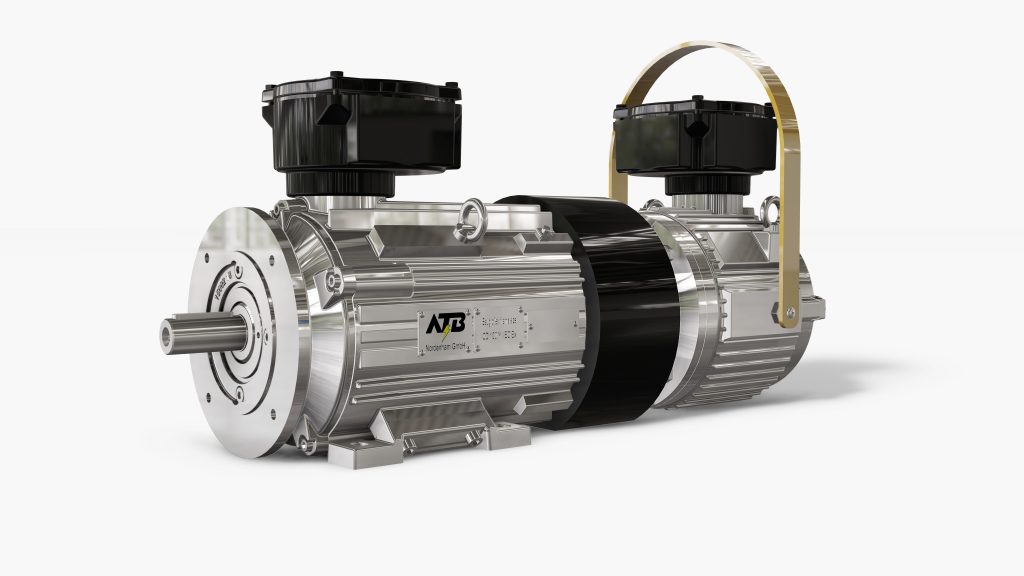

Attachment brakes

Brakes are used to limit and regulate the rotational speed of the motor or can also be used as a holding brake for positioning conveyor belts, for example.

For sizes 71 to 160, we have developed our own brake that can be installed on both the Drive-end and the Non-Drive end. Outside of these sizes, we work with various well-known manufacturers to offer tailor-made solutions.

Framesize

71 – 280

Explosion protection

II 2G Ex db eb IIC(B) T4 Gb,

II 2G Ex db IIC(B) T4 Gb,

II 2D Ex tb IIC T120°C Db

Braking torque

4 – 1200 Nm

Ex-certificates

ATEX, IECEx

Voltages

24 – 690

IP protection class

IP55, IP56, IP65, IP66

Temperature class

T4
